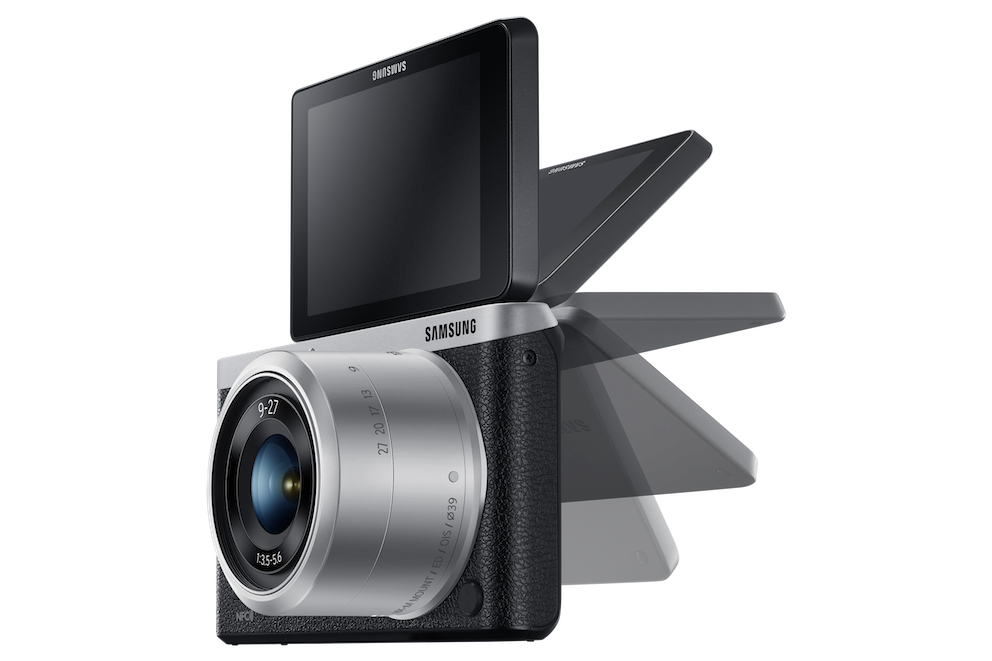

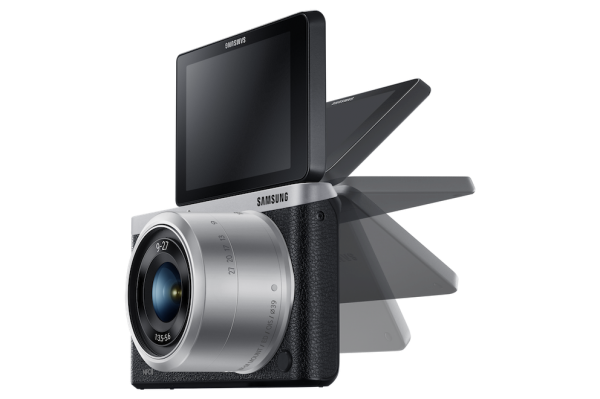

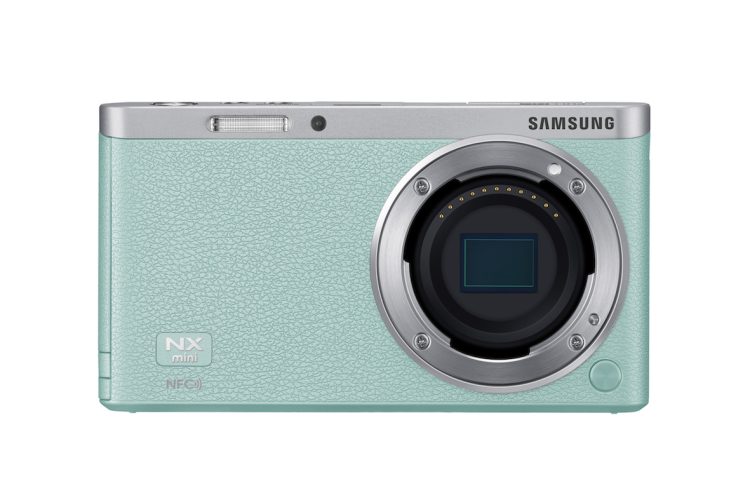

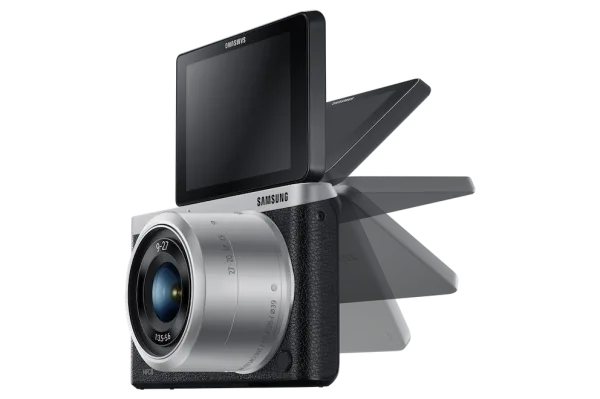

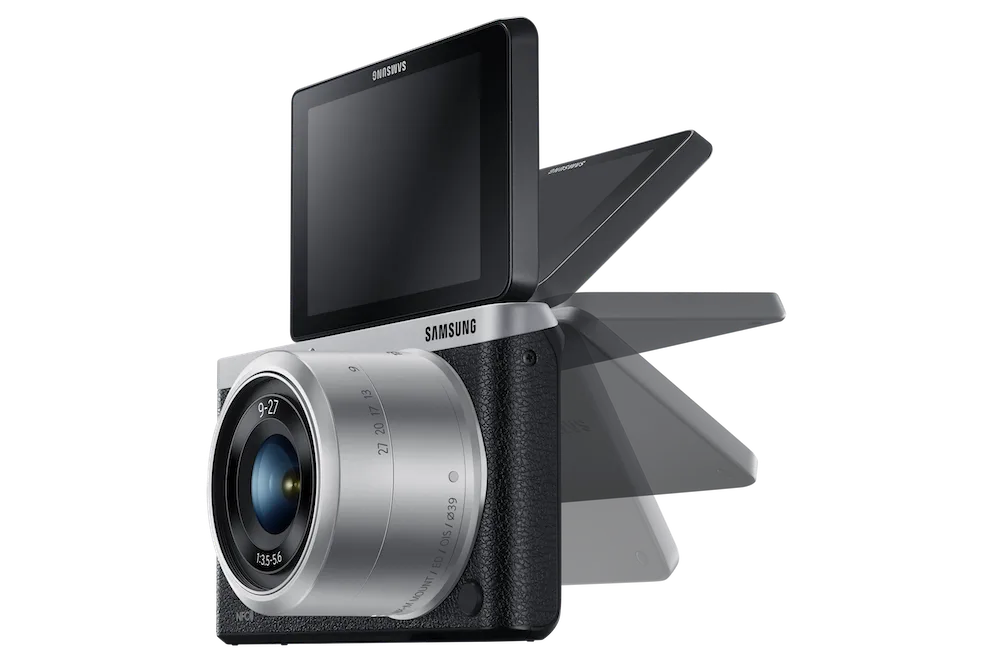

Samsung’s slimmest and lightest camera to date, the NX Mini Smart Camera is a very portable 20.5MP shooter that has a BSI CMOS Sensor, 3.0inch touch screen and 6fps shooting all included in a svelte 22.5mm design. Also just for the NX Mini, Samsung are coming out with specialized lenses just for this form factor; a 9mm f3.5 and 9-27mm kit lens. You will also be able to use existing NX lenses on the NX MIni with the help of an optional adapter.
The NX Mini Smart Camera is in stores now for a RRP of RM1,399.
Both lenses will be in stock from 1st June and the 9mm f3.5 will retail for RM659 and the 9-27mm kit will retail for RM929
Specs sheet after the jump
Samsung NX mini Product Specifications:
Image Sensor | 20.5 effective megapixel BSI CMOS sensor |
Display | 75.2mm (3.0-inch) Flip up and Touch LCD Screen HVGA(320×480) 460.8k dots |
View finder | N/A |
Flash | Built-in Flash: Guide Number 4.9 (at ISO160, 24mm), Guide Number 4 (at ISO100, 24mm) |
[Optional] External Flash / SEF7A: Guide Number 8 (at ISO160, 24mm), Guide Number 7 (at ISO100, 24mm) | |
ISO | Auto, 160, 200, 400, 800, 1600, 3200, 6400, 12800 *Extension settable 100, 25600 |
Image | JPEG (3:2): 20.0M (5472×3648), 10.1M (3888×2592), 5.9M (2976×1984), 2.0M (1728×1152), JPEG (16:9): 16.9M (5472×3080), 7.8M (3712×2088), 4.9M (2944×1656), 2.1M (1920×1080) JPEG (1:1：13.3M (3648×3648), 7.0M (2640×2640), 4.0M (2000×2000), 1.1M (1024×1024) 5.0M Burst mode only |
JPEG Burst mode: 5.0M (2736×1824) | |
RAW: 20.0M (5472×3648) | |
Video | MP4 (H.264, Audio AAC): Full HD 1920×1080/30p, 1280×720/30p, 640×480/30p, 320×240/30p |
Video Output | HDMI 1.3a |
Value-added Features | Tag & Go (NFC/Wi-Fi) |
SMART Mode: Beauty Face, Best Face, Landscape, Macro, Action Freeze, Rich Tone, Panorama, Waterfall, Silhouette, Sunset, Night, Firework, Light Trace, Continuous Shot, Kids Shot, Food, Parties and Indoors | |
Image SMART Filter: Miniature, Vignetting, Soft Focus, Sketch, Fish Eye, Classic, Retro, Oil Paint, Cartoon, Ink Painting, Cross Filter, Zooming Shot | |
Video SMART Filter: Miniature, Vignetting, Sketch, Fish Eye | |
Wi-Fi Connectivity | IEEE 802.11b/g/n support (Smart Camera 3.0) . AutoShare . SNS & Cloud . Auto Backup . Remote View finder Pro . Mobile Link . Samsung Link . Group Share . Photo Beam . Baby Monitor |
NFC | Advanced Passive NFC(Wired NFC) |
Bundle PC software | Adobe® Photoshop® Lightroom® 5, i-Launcher |
Storage | MicroSD, MicroSDHC, MicroSDXC, UHS-I MicroSD Support |
Battery | B740AE/B740AC/B740AU/B740AK (3.8V/ 2330mAh) B740AE(Global-2330mAh) B740AK(Korea) B740AU(USA) B740AC(China) |
Dimension (WxHxD) | 110.4 x 61.9 x 22.5mm (excluding the projection part) |
Weight | 158g (196g with battery) |
Recommended Retail Price & Availability | RM1399 & 18 April 2014 |
Samsung NX-M 9mm F3.5 ED Lens Specifications:
| Focal Length | 9mm (equivalent to 24.3mm in 35mm format) |
| Elements in Groups | 6 elements in 5 groups (1 Aspherical lens, 1 Extra-low Dispersion lens, 1 Xtreme High Refractive lens) |
| Angle of View | 83.4° |
| Aperture | F3.5 (Min. F13), (Number of Blades : 5 , Circular Aperture Diaphragm) |
| MinimumFocus Distance | 0.11m |
| Maximum Magnification | Approx. 0.11x |
| Mount Type | NX M Mount |
| Dimension (DxL) | 50.0 x 12.5mm |
| Weight | 31g |
| RecommendedRetail Price & Availability | RM659 & 1 June 2014 |
Samsung NX-M 9-27mm F3.5-5.6 ED OIS Lens Specifications:
| Focal Length | 9-27mm (equivalent to 24.3-72.9mm in 35mm format) |
| Elements in Groups | 9 elements in 8 groups (2 Aspherical lens, 1 Extra-low Dispersion lens) |
| Angle of View | 83.4° – 33.1° |
| Aperture | F3.5 – 5.6 (Min. F11), (Number of Blades : 7 , Circular Aperture Diaphragm) |
Optical Image Stabiliser | Yes |
| MinimumFocus Distance | Wide 0.14m, Tele 0.2m |
| Maximum Magnification | Approx. 0.1x (Wide), 0.18x (Tele) |
| Filter Size | Ø39 |
| Mount Type | NX M Mount |
| Dimension (DxL) | 50.0 x 29.5mm |
| Weight | 73g |
| RecommendedRetail Price & Availability | RM929 & 1 June 2014 |
*All functionality, features, specifications and other product information provided in this document including, but not limited to, the benefits, design, pricing, components, performance, availability, and capabilities of the product are subject to change without notice or obligation.
